Our Most Compact Home Lift

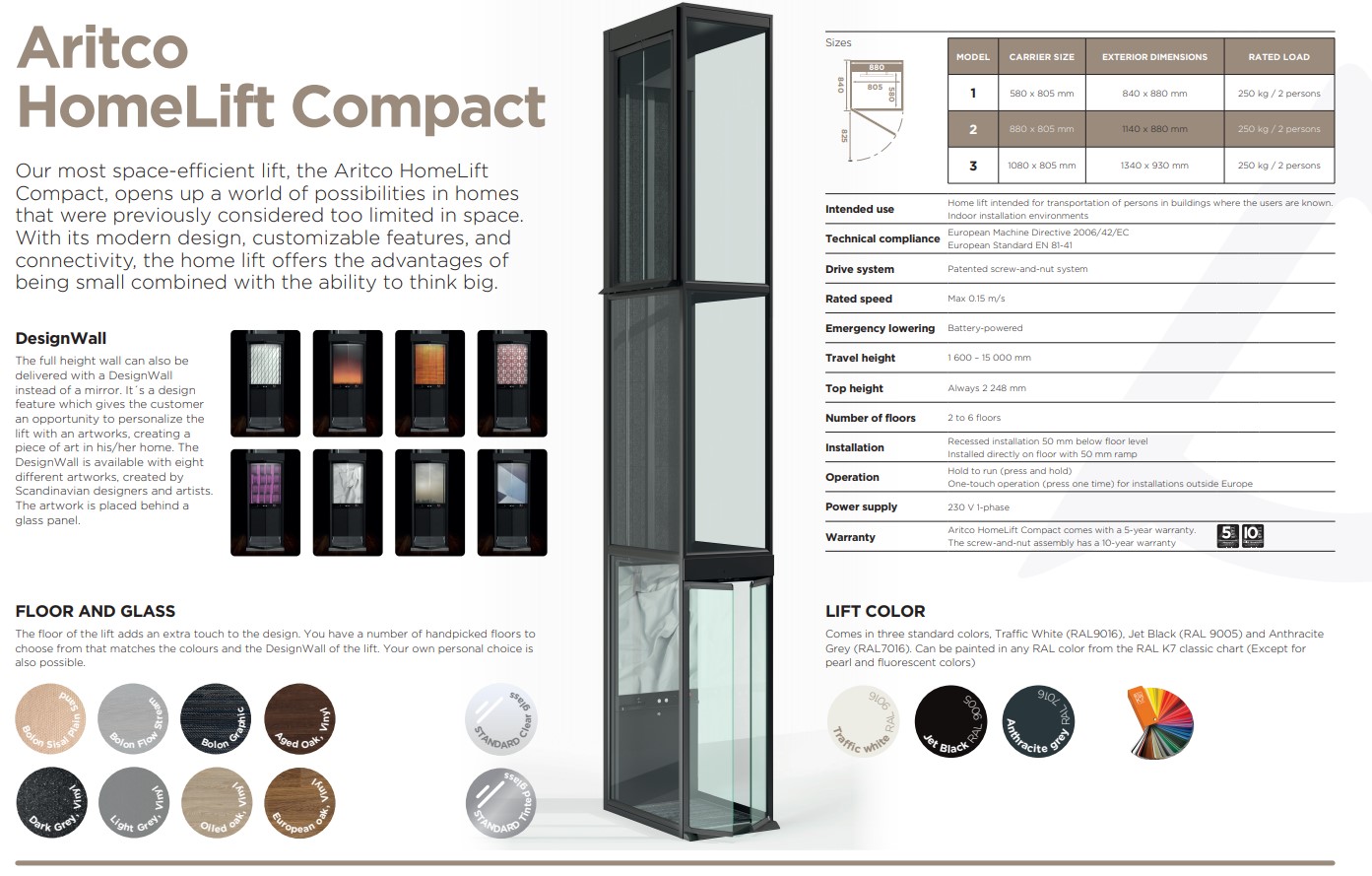

ARITCO HomeLift Compact
Accessibility
Excellent accessibility and design are now available in more compact packages. No house or space is too small for the convenience and safety of a home lift with the Aritco HomeLift Compact. Whether you're assisting clients in building an innovative, new home from the ground up or future-proofing an existing home, this elegant lift combines the advantages of being small with the possibility of thinking big.
Design
Our most space-efficient lift opens up possibilities in previously thought-too-small homes. With its modern design, customisable features, and connectivity, the home lift combines the benefits of being small with the ability to think big. The lift follows the same Scandinavian design philosophy as our other lifts. Its size and design meet all comfort, space, and design requirements.
Space Efficient
With three platform sizes, the Aritco HomeLift Compact can be configured to be used as a small standard wheelchair lift or to carry up to two passengers, making it ideal for any size property - and it's eco-friendly to run, consuming roughly the same amount of power per year as a washing machine. This domestic lift comes with a shaft enclosure, making it virtually self-contained, and it is simple to install anywhere in a new build or as a retrofit in existing homes. The Aritco HomeLift Compact is a stylish and functional lift designed to blend into and modernise any home
Features
Optimal design and size with a wide range of finishes
Low maintenance and operating costs
Made using up to 95% recyclable materials
Minimal building work & quick installation
Energy efficient (low power usage)
Self-contained unit (no separate machine room)
Patented screw/nut technology
Equipped with our SmartSafety system
Specifications
European Machine directive
2006/42/EC
European standard EN 81-41
Home lift intended for transportation of persons in buildings where the users are known.
Patented screw/nut system
0,15m/s
1 600 - 15,000 mm
Max. 6 stops per lift
Max. 6 doors per lift
Max. 2 doors per floor
50 mm (no pit is required when there is a threshold/ramp)
Always 2,248 mm
”Hold to run”, the destination button must be kept pressed down during the whole ride
One-touch call
Indoor
Battery operated emergency lowering
24V
2,2kW
1-phase 230 V. Fuse 16A slow 1
250 kg
1 Frequency 50 or 60 Hz. Frequency Converter always included.
Dimensions
Model |
Carrier Size |
Exterior Dimensions |
Rated Load |
|---|---|---|---|
1 |
580 x 805 mm |
840 x 880 mm |
250 kg / 2 persons |
2 |
880 x 805 mm |
1140 x 880 mm |
250 kg / 2 persons |
3 |
1080 x 805 mm |
1340 x 930 mm |
250 kg / 2 persons |
1140 x 1400 mm |
400 kg |
5 pers. |
A or B with attendant |
1140 x 1400 mm |
400 kg |
5 pers. |
A or B with attendant |
