Making Public And Commercial Buildings Accessible For Everyone

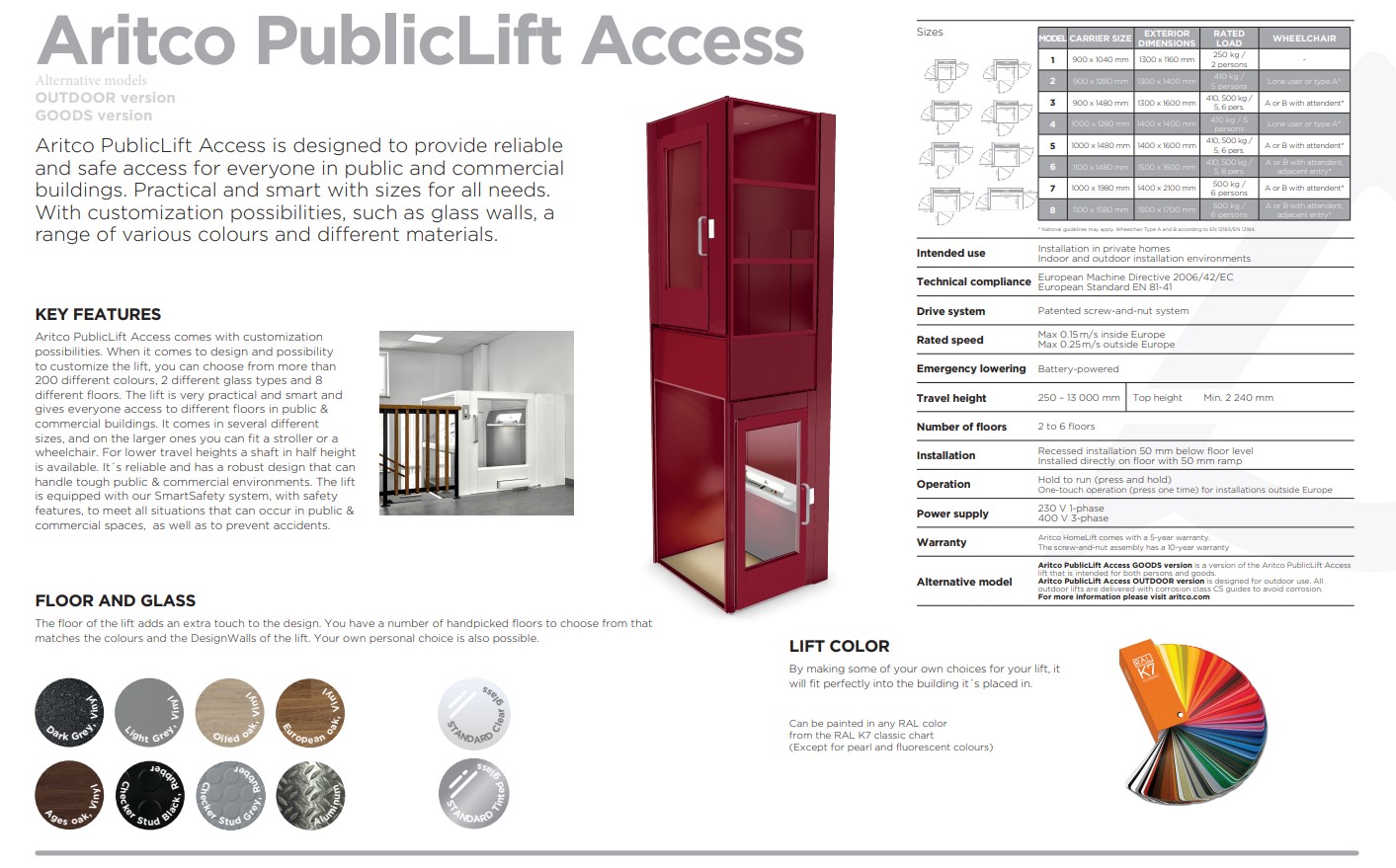

ARITCO PublicLift Access
Accessibility
Aritco CommercialLift Access is a lift that is designed to provide dependable and safe access for all people in public and commercial buildings. This lift is one of the most versatile platform lifts on the market, providing a simple, cost-effective solution for access in almost any building while meeting the highest quality, safety, and service life standards. The lift is designed in the Scandinavian style, with a backlit panel, lit handrail and a wide range of finishes and colours.
Lifts For All Needs
Because of the safety features, low energy consumption, and customisations you would expect from a commercial lift, the Aritco CommercialLift Access is one of our most popular lift models. Its size, weight capacity, and compliance make this lift popular for schools, office buildings, hospitals, care homes, and retail. The Aritco CommercialLift Access is self-contained, eliminating the need for a separate machine room or pump box housing, making it ideal for restricted or listed buildings.
Safety
A typical Aritco CommercialLift Access installation takes three days, thanks to our nationwide network of specialist engineers. The lift employs a modular, free-standing frame structure to reduce delivery and installation time, requiring only a load-bearing footprint and no major on-site building wor
Features
Up to 13m (6 stops) with up to 2 doors per floor
Quick 3 day installation
8 platform lift sizes
Quiet and energy efficient lift
Internal installation
No head room, machine room or pump box
Small footprint
50mm recess or ramp
Specifications
European Machine directive
2006/42/EC
European standard EN 81-41
Platform lift intended for use in public & commercial environment
Patented screw/nut system
0,15m/s
500 -13 000 mm 1
Max. 6 stops per lift
Max. 6 doors per lift
Max. 2 doors per floor
50 mm (no pit is required when there is a ramp)
One, two or three sides
Minimum 2240 mm. Maximum 4000 mm. (1100-1600 mm with half height door)
”Hold to run”, the destination button must be kept pressed down during the whole ride
One-touch call
Indoor/outdoor
Battery operated emergency lowering
24V
2,8kW (3kW for higher speed)
Electrical
1-phase 230V 50 Hz/16 A/16 A slow 3-phase 230V 50 Hz/9 A/16 A slow 3-phase 400V 50 Hz/5.2 A/16 A slow
250, 410 or 500 kg (depending on platform size)
1 Travel height when having a half door is maximum 3000 mm
Dimensions
Platform Size |
Exterior Dimensions |
Rated Load |
Persons |
Wheelchair |
|---|---|---|---|---|
900 x 1040 mm |
1300 x 1160 mm |
250 kg |
2 pers. |
- |
900 x 1280 mm |
1300 x 1400 mm |
410 kg |
5 pers. |
Lone user or type A* |
900 x 1480 mm |
1300 x 1600 mm |
410, 500 kg |
5, 6 pers. |
A or B with attendant* |
1000 x 1280 mm |
1400 x 1400 mm |
410 kg |
5 pers. |
Lone user or type A* |
1000 x 1480 mm |
1400 x 1600 mm |
410, 500 kg |
5, 6 pers. |
A or B with attendant* |
1100 x 1480 mm |
1500 x 1600 mm |
410, 500 kg |
5, 6 pers. |
A or B with attendant, adjacent entry* |
1000 x 1980 mm |
1400 x 2100 mm |
500 kg |
6 pers. |
A or B with attendant* |
1100 x 1580 mm |
1500 x 1700 mm |
500 kg |
6 pers. |
A or B with attendant, adjacent entry* |
